Home /Products/Sea Water RO Plant/500LPH Hotels Water RO EDI System Polished Mixed Bed Resin Ultrapure Ion Exchange For Pharmaceuticals

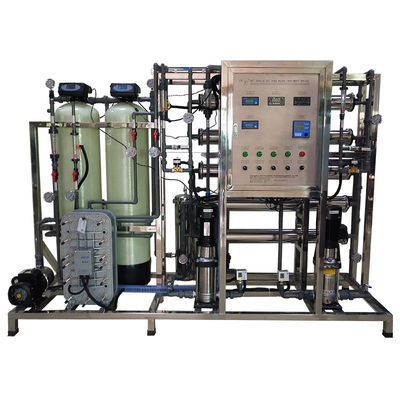

500LPH Hotels Water RO EDI System Polished Mixed Bed Resin Ultrapure Ion Exchange For Pharmaceuticals

1.0 Sets
MOQ
500LPH Hotels Water RO EDI System Polished Mixed Bed Resin Ultrapure Ion Exchange For Pharmaceuticals
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: Gearbox, Pressure Vessel, Pump, Gear, Bearing, Engine, Motor, PLC, RO Membrane
Material: Carton Package
Weight: 450KG
Size: 1870*650*1850mm
Power: 2.5KW
Warranty: 1 Year, 1 Year
Productivity: 500L/Hour
Type: Ultrapure Water RO EDI System And Polished Mixed Bed Ion Exchange
Electrical Power: 220V 380V 450V/ 1ph 3ph / 50HZ 60HZ
RO Membrane: DOW LCLE-4040
Function: Water Ultra Purifier
Multistage Pump: CNP
Capacity: 500L/H
Filter Media: Sand/ Carbon/ PP Cartridge
Pipeline Fittings: SUS304/ U-PVC Optional
Control Valve: Automatic/ Manual Optional
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support
Basic Infomation
Payment & Shipping Terms
Product Description
Company Information

Input Your Owned Water, Output Your Needed Water


Kai Yuan company which is >12years experience in water treatment with ISO9001, CE, SGS Certification, good feedback, excellent quality and top 5 supplier in China. (Our mission: Input your owned water, output your needed water. Our values: Build win-win relationship with client, staff and supplier.)

Our company approved: ISO9001, CE, SGS, utility model patent certificate, water product sanitation license,
MIAC(China Membrane Industry Association), China Water Enterprises Confederation Desalination Branch...

Our Service:
A team of experienced engineers are dedicating in developing, manufacturing, installing and debugging the equipments and international sales can be contacted any time. We have not only strict quality control, products are approved by CE and SGS, but also considerate customer service hot-line. Meanwhile, professional engineers can provide satisfying plan
as customer's requirements. i. e. OEM/ODM service is available.

We have more than 20 engineers, they help to supply all kind of treatment process according to customers their raw water quality and output water requirement, all of them have more than 10years experience, pipe connection technology can acheved high medical level, also they can help to go to install our machine all over the world if customer they want; so in others words we are 100% OEM/ODM professional team, and we provide free lifetime technique support with you^^

Our advantages:
A. Stable quality, do not change suppliers >12 years;
B. Price is ideal and keep the price fixed , customers believe us;
C. Fast delivery and high efficiency, we pay great attention to timeliness for the convenience of customers;
D. Professional team, tell us what you needs, we will quickly provide a suitable solution with you.
Product Description

500LPH Ultrapure Water RO EDI System Polished Mixed Bed Resin Ion Exchange For Pharmaceuticals, Semiconductors

Output to 18MΩ!!!


System Advantages
√. Main part (membrane) of reverse osmosis system is imported from USA.
√. Auto stop when no water and full water.
√. Auto controller, RO membrane auto flush to protect membrane.
√. Auto start when pure water tank have no water.
√. Low pressure protection switch to protect high pressure pump when there is no raw water.
√. High efficient and low noise high pressure pump.
√. Product water conductivity meter to monitor product water quality all the time.
√. Input water and output water pressure gauge to monitor RO membrane
√. Differential pressure to remind it's time for chemical cleaning.
√. Inlet water solenoid valve to stop water when machine is stop.


Two stage RO system
This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.


If raw water conductivity is less than 300uS/cm, first stage output is less than 10uS/cm, two stage output is 2uS/cm

EDI system
EDI, also known as electric desalination. It is a new ultra pure water technology which gradually developed in the 20th century. EDI equipment combined electro dialysis technology and ion exchange technology. It is using the selectivity penetrate function of anion and cation membrane and exchange function of ion exchange resin, under direct current electric field to make ion directed migration. Finally to make deep desalination of water. In the same time, hydrogen ion and hydroxide ion which produced when water ionize will regenerate ion exchange resin. So if use EDI equipment, no need acid and alkali chemical to do any regeneration, and it can produce ultra pure water continuously.
EDI input water must less than 10uS/cm, output water quality less than 0.2uS/cm.

Polished mixed bed system
Polishing resins are generally used at the end of ultrapure water treatment systems to ensure that the
system's effluent quality maintains water standards. Generally, the effluent water quality can reach 18
megaohms or more. After the polishing resin fails, it is discarded. Filled with resin, it can be used when
slowly passed through water. Recycle water in pure water tank to minimize conductivity, Resistivity more than 18MΩ.


500LPH 2#RO+ EDI+ polished mised bed water teratment
1. Capacity: 500L/H 2. Rated power: 1.5KW/H 3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase 4. Desalting rate:>=97% 5. Water recovery rate: 50-75% 6. Conductivity of raw water: ≤400μs 7. Conductivity of pure water: ≤10μs
8. Packing size: 1650*630*1800mm
9. Total weight: 350kg
10. Pump: Ningxiao/ CNP/ Grandfos
Optional Components :
A. Regulating wheels B. PLC Touch Screen C. Two-stage RO system D. PH adjustment anti-scale E. Automatic cleaning system F. Auto or manual control valve G. U-PVC or stainless steel pipe ​​​​​​​H. UV sterilizer/Ozone Generator I. Dosing system/Water Softener J. PE or stainless steel raw/pure water tank K. FRP or stainless steel pre-treatment tank

Capacity (our production range :100LPH-100TPH)


Related products
500L/H SS RO
Softener System
1000L/H Salty
Water System
3500L/H Ultrafiltration
UF Sytem
500L/H Ultra Pure RO+EDI+MB system
3T/H Softener System
5T/H RO System
6T/H Brackish RO System
10T/H SS RO System
Process: raw water tank(buyer provided)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1#high pressure pump→1#ro system→2#high pressure pump→2#ro system→EDI system→Polished bed mixed→pure water tank(buyer provided)+UV sterilizer(ozone generator) +water supply point
Some parts function for your reference as below^^:
Quartz sand filter: fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
Activated carbon filter: fill activated carbon inside, to remove color, odor, residual chlorine and organics substances
Security filter: fill cation resion inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
RO membrane: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
EDI membrane: ultrapure water, output conductivity less than 0.2uS/cm
UV sterilizer(ozone generator): for killing bacterial in water, be safe for drinking.
Polished mixed bed resin: ultrapure water, output resistivity less than 18MΩ

Component:

There are several kinds of consumables you need to replace regularly. (500LPH)

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. PP Filter cartridge: replaced about every 1 month
d. Ro membrane: replaced about every 2 year
e. Polished Mixed Bed Resin: replaced about every 3months

We suggest you buy 1- 2 years of PP filter cartridges together with machine.
Because these PP filter cartridges need to replace every month.

Application:

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......

Treated water:
1. Electronic industry: pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding
Packing & Delivery

We have stock all year round such as 500LPH, 1000LPH reverse osmosis system. If you want now then take it now^^


Delivery time: 1-7working days for small machine, 15-45working days for big machine(depend on raw materials stocking)

Export standard packing: carton/wooden case(plywood), no need to fumigate, suitable for shipping.

FAQ

1.What is the Guarantee and after sale-service Kai yuan company can supply ?

It is one year guarantee ( except for Artificially damaged)

Any problems with the accessories, like valves , pumps etc. within 1 year , we could delivery to you for free .

After one year, if there's any fault, we provide 24hours online technical support and will make measures to solve it.

2.Does the machine/equipment difficult to install ?
Kai yuan factory already connect/adjust well for the machine before delivery, and we will provide the specific entire system"User Manual", if need can take Video for how to operate machine. .
3.Does Kai yuan will help customer install the machine in their country ?
In additional , Kai yuan can also send their engineers to customer place to install this equipment and train staff, but the buyer should pay for the relevant cost for our workers.
4.What is the packing of this machine ? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for shipment. After you receive machine, you open wooden case to pick out of machine is ok .
5. What is requirement information i need to provide for achieve the suitable ro machine/other relevant products i want ? It is kindly that you could provide us a raw water analysis /water test report .


How to plaec order?


Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours.


Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
