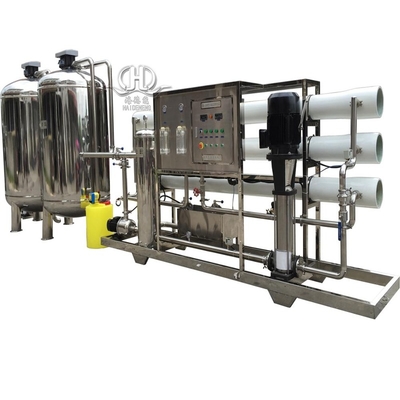

10T/H filtration desalination system for high output drinking water water purification process machine

10T/H desalination system for drinking water process water purification machine

Place of Origin: Wenzhou China (Mainland)

Brand Name: WZHDN Model Number: HDNRO

Control way: PLC and man machine interface or computer

RO membrane brand: Film Tec ,Hydranautics or PFT

Multi media filter material: quartz sand,5 types 1,2,3,4,5

Active carbon filter material: active carbon, iodine 900

RO high pressure pump: modern pump, Nan fang pump or select by the user

Raw water temperature: 15--35 centigrade

Raw water PH range: 4-9

Raw water hardness: 17mg/L (calcium carbonate)

Raw water pollution index: SDI less than 5

Raw water total dissolved solids:      less than 1000mg/L

System capacity changes significantly with water temperature and feed TDS, for higher TDS,a water analysis must be supplied and could result in modifications to the system. Our reverse osmosis system are mostly custom designed specifically for your water treatment requirements by our experienced engineers.

A. Product Description

Reverse Osmosis(RO) use enough pressure to separate  solvent (usually it is water) of liquor through film of RO membrance, so it is called to reverse osmosis, RO as high efficient technology of desalting which can remove impurity such as inorganic ion, bacteria, virus, organic substance and colloid so  that high quality pure water could be obtained. The system salt rejection rate gets 96-98%, outlet water conductivity gets ≤10μs/cm².

B. Main Flow Chat

(Pure water tank)--->raw water pump--->quartz sand filter--->active carbon filter---> Scale inhibitor
/water softener--->Ultrafilter--->high pressure pump--->reverse osmosis system---> (pure water tank)

C. Parameters:

1. Capacity: customized

2. Rated power: check with the configuration list

3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country

4. Desalting rate:97-98%

5. Water recovery rate: 50-70%

6. Conductivity of raw water: ≤400μs or custom designed

7. Conductivity of pure water: ≤10μs or custom designed

D. Application Field

• Electronics Industry: Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries
• Food and Beverage field: Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown
• Phamaceutical industry:Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection
• Cosmetics :The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.
• Chemistry and Chemical Engineering:The using of pure water in the production of chemical reagent, chemical fertilizers and paper making
• Surface Treatment: The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water

What is RO (Reverse Osmosis) ?
Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions,molecules, and larger particles from drinking water. it could apply to both industrial processes and the production of potable water.

Typical RO Processing:
Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system
1. Feed water pump: provide the pressure to sand filter /active carbon filter/ softener
2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.
3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.
4, Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness.
5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump: Provide the high pressure to RO membrane (at least 2.0 Mpa).
7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.

    System capacity changes significantly with water temperature and feed TDS,for higher TDS,a water analysis must be provided and could result In modifications to the system.Our reverse osmosis system are mostly custom designed specifically for you water treatment requirements by our experienced engineers

    Wenzhou Haideneng Environmental Protection Equipment & Technology Co., Ltd Professional manufacturer of all sorts of water treatment equipments: Such as pure water machine, mineral water machine, deionized water machine, Medical water purifying machine. EDI device, waste water recycle and reuse system, Sea water desalination system, factory direct drinking water system, bottled water and barreled drinking water production line, coding machine, bottle blowing machine,etc. We are an engineering company that integrates technology research, development, design, production, installation and personnel training in one. Gathering engineering technicians with abundant experience, we will do our best to serve for food, dairy, beverage, biology and pharmacy, boiler, brewing, electronic, electric appliance, electroplate, leather, printing and dying, painting and dying, paint, chemical , and surface treatment industries. We supply water treatment production lines and all other industrial equipment of deionized water. Our company will provide the best price and good service for our customer and distributors all over the world. Main products: Reverse osmosis water system, Hollow fiber ultra filtration device, Ion exchanger, EDI device, Ozone generator, UV sterilizer, household RO water purifier, etc. Other relative products: SUS304, 316L multi-medium filters, active carbon filters, cartridge filters, stainless steel sterile water storage tanks, water pumps, valves, food grade stainless steel pipes,etc.

1. Lifetime after-sales technical support. We deal with your complains within 24 hours.
2. Our technicians can help to install, debug or fix the equipment locally if needed, with round air tickets, visa, accommodation and labor cost provided by your party.
3. During the warranty time, any problems(except for artificially damaged) with the valves, pumps etc. we will send you the replacement for free.
4. Product configuration design using modular approach can be developed and produced according to user needs all kinds of special specification products to meet the diverse needs of the market.
5. All staffs in our company with philosophy of "integrity, dedication, truth-seeking, enterprise" would be dedicated to provide high quality service and products for you, and wish to create better future with you!

Q1: Are you manufacturer or trading company?
A1: We are the most professional manufacturer in China, and we have more than 20years experience in the water treatment..

Q2: What is your business scope?
A2: Drinking water, Medicine, Food, Beverage, Dairy, Chemical and cosmetic industries etc.

Q3: How could we confirm the details of the products?
A3: WZHDN will provide all technical support for you to confirm,and the drawings also send you for free if we get your company information.

Q4: How long the warranty will be?
A4: 1 Year warranty.

Q5: How about the installation? And what if the machine goes down?
A5: There are two options:a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. b. On-line service will be provided.Its easy to install and debug.

Q6: What is the payment terms?
A6: Usually we main make the FOB and T/T.

Q7: Can we become your distributor in our country?
A7: Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
