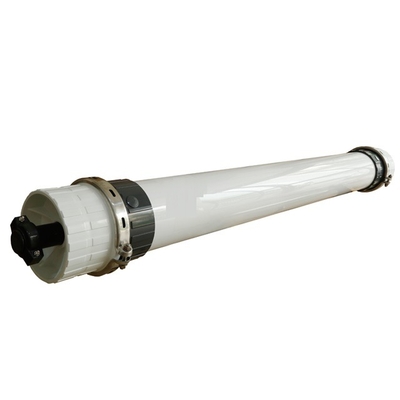

UF2860 UF 2880 are an Ultra Filtration membrane module made by PVDF material hollow fiber tubes, and cover is PVC shell. These UF membranes are characterized by Antibacterial function.(especially good for removing particulate, virus, colloid, albumin protein, gelatin, carbon black, organic compound.......)
|
MODEL |
L |
L1 |
L2 |
L3 |
D |
In/out Ø |
|
UF2860 |
1860 mm (73’’)
|
1500 mm (59’’)
|
1630mm (64’’) |
1820 mm (72’’) |
225mm (9’’) |
DN50 mm (2’’) |
|
UF2880 |
2360 mm (93’’)
|
2000 mm (79’’)
|
2130mm (84’’) |
2320 mm (91’’) |
225mm (9’’) |
DN50 mm (2’’) |
|
UF2880
|
Filtration Type |
Outside-In
|
|
Max. Working Pressure (@ 20ºC)
|
94 psi (0.62MPa / 6.25bar) |
|
|
Suggested Working Pressure |
43 psi (0.3MPa / 3bar) |
|
|
Backwash pressure(suggested) |
36 psi (0.25Mpa /2.5bar ) |
|
|
Air Flush Rate(Duration 2~4mins)(suggested) |
7~9 acfm (12~15m3/h) |
|
|
Max. Trans-Membrane Pressure Drop(TMP) |
30 psi (0.2MPa / 2bar) |
|
|
Feed Water Temperature |
1~40℃ |
|
|
Active Membrane Area |
77 m2(829ft2) |
|
|
Filtrate Water Flow Range |
13~40 GPM (3~9M3PH) |
|
|
Molecular Weight Cut-Off /MWCO/(average porosity/pore Ø) |
100,000 Dalton (0.01µm~0.1 µm) |
|
|
Hollow Fiber Tubes In/Out Diameter |
0.6/1.2mm |
|
|
pH Range of Feed Water During Continuous Operation |
2~11 |
|
|
Operation Mode |
Cross flow/Dead-end flow |
|
|
Max Feed Water Turbidity |
< 300 NTU |
|
|
Product Water Turbidity |
<0. 1 NTU |
|
|
Feed Water Particle size (max.)
|
< 300 µ
|
|
|
Feed Water SDI15 |
< 25 |
|
|
Product Water SDI15 |
< 2.5 |
|
|
Product water average flow in system(Suggested) |
Approximately 3M3PH |
Drinking water, surface water and river water drinking treatment
Pre-treatment of RO reverse osmosis system
Industrial wastewater treatment, recycling and utilization
UF-2880 ultrafiltration membrane belongs to capillary hollow fiber membrane,It is a polymer material membrane,It is a separation product without phase change.With the material of modified PVDF, It has good water permeability, mechanical properties, chemical resistance and pollution resistance,The membrane filter precision is 200000 Dalton. The inner diameter of the hollow fiber is 0.8mm,the outer diameter of it is 1.3mm,the Module type is Outside-in. It can filter various harmful substances such as bacteria, colloids, suspended solids and microorganisms which are in the feed water.
Typical operating parameters
| Parts | Material |
| Hollow fiber | modified PVDF |
| Sealing | Epoxy resin |
| Shell | UPVC |
