Home /Products/UF Membrane Filter/52m2 UP-860 PVDF UF Membrane Module Exterior - Inside Model For Water Treatment

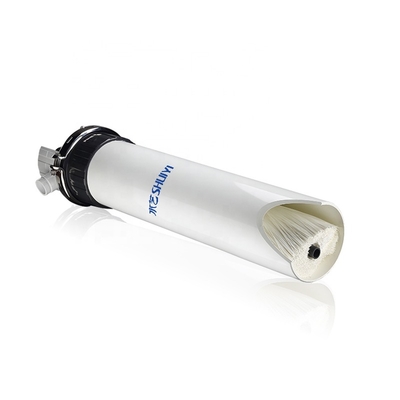

52m2 UP-860 PVDF UF Membrane Module Exterior - Inside Model For Water Treatment

10.0 Pieces
MOQ
$750.00(10 - 99 Pieces) $700.00(>=100 Pieces)
Price
52m2 UP-860 PVDF UF Membrane Module Exterior - Inside Model For Water Treatment
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Municipal And Industrial Water Water Treatment
Showroom Location: None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: 1
Material: Wooden, Inner Reinforced PVDF
Weight: 75kg
Size: 1860* 1630* 225 Mm
Warranty: 1 Year
Productivity: 100L/Hour
Weight (KG): 75 Kg
Operate Method: Outside-to-inside
Nominal Pore Size: 0.03μm
Outside Diameter: 1.3mm
Effective Membrane Area: 52m2
Turbidity: ≤0.1 NTU
Operating Temperature: 5-40℃
Design Flux: 30~120 L/m2.h, 25℃
Max Filtrating Trans-membrane Pressure: ≤0.2MPa
Filter Type: Dead End Or Cross-flow Filtering
After Warranty Service: Online Support, Spare Parts
Local Service Location: None
After-sales Service Provided: Field Installation, Commissioning And Training, Online Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: Sale Of Inner Reinforced PVDF Hollow Fiber Membrane For Industrial Water Treatment
Supply Ability: 500000 Square Meter/Square Meters per Day
Product Description
Product Description
Model

RP-8060D
RP-8080D






Parameters
Membrane Material
Homogeneous PVDF

Operating Type
External Pressure Hollow Fiber Membrane

Nominal Diameter
0.03μm

Membrane wire inner/outer diameter
0.7/1.3 mm

Effective membrane area
52 m2
77 m2
Membrane Size
Dimension
φ225×1860 mm
φ225×2360 mm

Water inlet/outlet interface
DN50
DN50
Weight
Membrane Weight(Wet)
75 Kg
92 Kg
Filter Type

Dead end or cross-flow filtering
Turbidity of Produced water

≤0.1 NTU
Product Display
Case Display
Company Profile
SHUIYI GROUP is a professional raw water solutions provider who is engaged in providing complete design, engineering and construction of water treatment projects. We offer a full range of high-quality membrane technology based on solutions, including UF hollow fiber membrane, MBR membrane, etc. SHUIYI group is equipped with advanced production equipment and test equipment, under ISO9001, ISO14001, and OHSAS18001. Our annual production capacity is 3 million SQ.M of Hollow Fiber Membrane. We are committed to our customers worldwide by providing cost-effective, reliable and sustainable solutions and products. SHUIYI’s mission is to be the most professional global membrane solution provider in the water treatment industry.

Main Products MBR Membrane Modules CMF Pressurized UF Membrane Modules SMF submerged ultrafiltration membrane modules
Certifications
Advantages
1.10+ Core technology patents 2.Strong technical research and development capability 3.Advanced production and test equipment 4.Undertake the National Research Project on "membrane method water treatment integration technology" 5.Reliable Products and professional water treatment solution provider 6.Stable Manufacture with high production capacity 7.Advanced technical support and aftersales services
6 Core Technology + 4 Customer Values
Our Packaging
Factory Show
Payment & Delivery
